Resistor-Programmable SOT Temperature Switches

General Description
The  G708  are  fully  integrated,  resistor  programmable  temperature  switches  with  thresholds  set  by  an  exter-nal resistor. They require only one external resistor to set  the  temperature  threshold  within  a  wide  0°C  to  +125°C  temperature  range.  The  G708  provides  an  open-drain, active low output. These switches operate with  a  +2.7V  to  +5.5V  single  supply  while  providing  a  temperature  threshold  accuracy  of  ±0.5°C  (TYP)  or  ±3.5°C  (MAX)  or  ±3°C  (60°C  to  +100°C).  They  typi-cally  consume  33μA  supply  current.  Hysteresis  is  pin  selectable to 10°C or 30°C. The G708 are available in 5-pin SOT-23 and TDFN2X2-8 packages.

Features „
±0.5°C Typical Threshold Accuracy„
±3.5°C (max) Threshold Accuracy(0°C to +125°C)
„±3°C Threshold Accuracy(60°C to +100°C)
„Temperature Threshold Set by a 1% External Resistor
„Low 33μA Supply Current „
Open-Drain Active Low Output Stage
„Guaranteed Reset Valid to VCC = 0.8V
„Pin-Selectable 10°C or 30°C Hysteresis
„SOT-23-5 and TDFN2X2-8 Packages

Applications
„μP Temperature Monitoring in High-Speed „
Computers „
Temperature Control
„Temperature Alarms
„Fan Control
„Automotive

Ordering Information

Note:T1 : SOT-23-5    RC: TDFN2X2-8   U : Tape & Reel

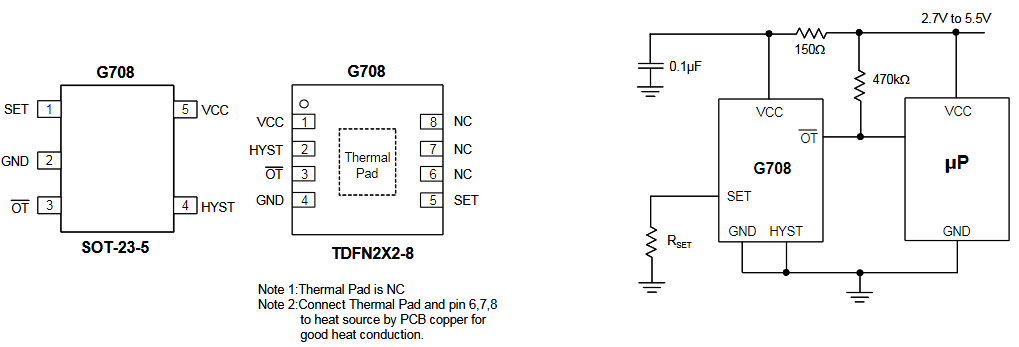

Pin  Configuration                                                                                                                                Typical  Application  Circuit
