北京君正T10
君正T10
 |
|
君正代理芯片规格
| CPU | XBurst single core, up to 1GHz. MXU2.0 IVS Engine, innovative 128 bit SIMD extension instruction 32KB L1 I-cache and 32KB L1 D-cache. 128KB L2 unified cache. Hardware floating point unit. |
| Encoder engine | H.264 baseline, main profile MJPEG/JPEG Baseline |
| Encode Performance | Max resolution 1280x960 Up to H.264 960P@40fps encode H.264 multiple streams --720P@30fps+VGA@30fps+JPEG@15fps --960P@30fps+VGA@30fps+JPEG@15fps ABR/VBR/CBR/CQP 8 ROIs 5-layer OSD with hardware |
| ISP | AE, AWB, AF Lens shading correction Advanced spatial noise reduction Motion-adaptive temporal noise reduction (3D de-noise) Multi-exposure HDR image fusion (WDR) Space-variant HDR processing Host tuning tools |
| Memory | Embedded DDRII@400Mhz Maximum capacity of 512Mbit |
| Computer Vision | Motion Detection/Perimeter Protection Face Detection Human Detection People Counting License Plate Recognition |
| CMOS Sensor | Maximum 12 bit HSYNC/VSYNC (DVP) I2C sensor control, Flash and DC control Programmable sensor clock output Up to 100M pixels/s input |
| Audio | Embedded audio CODEC. AAC, G726, G711, PCM encoding Echo cancellation |
| On-chip Peripherals | POR, RTC, WDT 2 channel ADC UART x 2, I2C x 2, SPI x 2, GPIO x 12 SDIO x 2, support SDHC PWM x 4 USB OTG RMII EMAC, support PHY clock output. |
| Security | AES/DES/3DES by Hardware Global unique Chip ID 32Byte customer OTP |
| Physical Feature | Less than 400mW power consumption including DDRII TFBGA181 ROHS, ball pitch of 0.65mm,body size of 10mmx10mm |
| OS | Linux-3.10. |

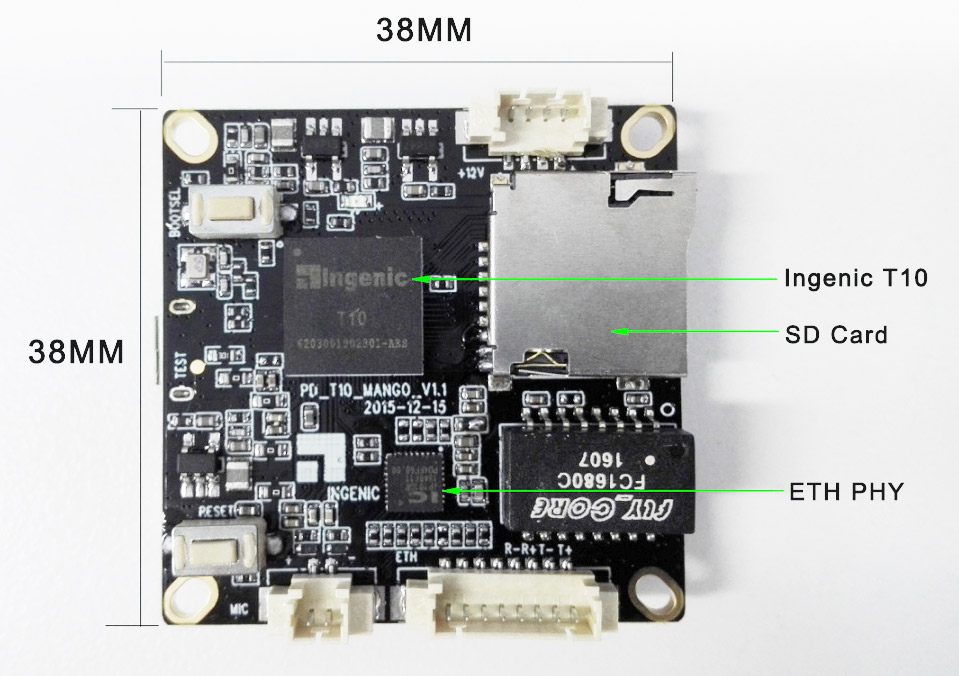

T10 Mango开发板
开发板Feature
| 功能列表 | 描述 |
| 处理器 | T10，860MHZ，32KB L1 Cache，128KB L2 Cache，SIMD128 |
| 内存 | DDR2-800（400MHz ClkRate），Data Width-16bit，Capacity-512MBit |
| 存储 | 8/16 MByte SPI Nor Flash，支持128GB TF卡 |
| Sensor支持 | OV9732/OV9750/H42/SC1145/SC1135/H61/BF3115/GC1024等 |
| 视频 | DVP Camera、960p@30fps |
| 音频 | 支持录放音 |
| 网络 | USB WIFI、SDIO WIFI、以太网 |
| 接口 | UART，USB-OTG |
| 功耗 | JXH42 Camera Sensor，以太网传输双路码流，整板功耗大约在80mA@12V |
